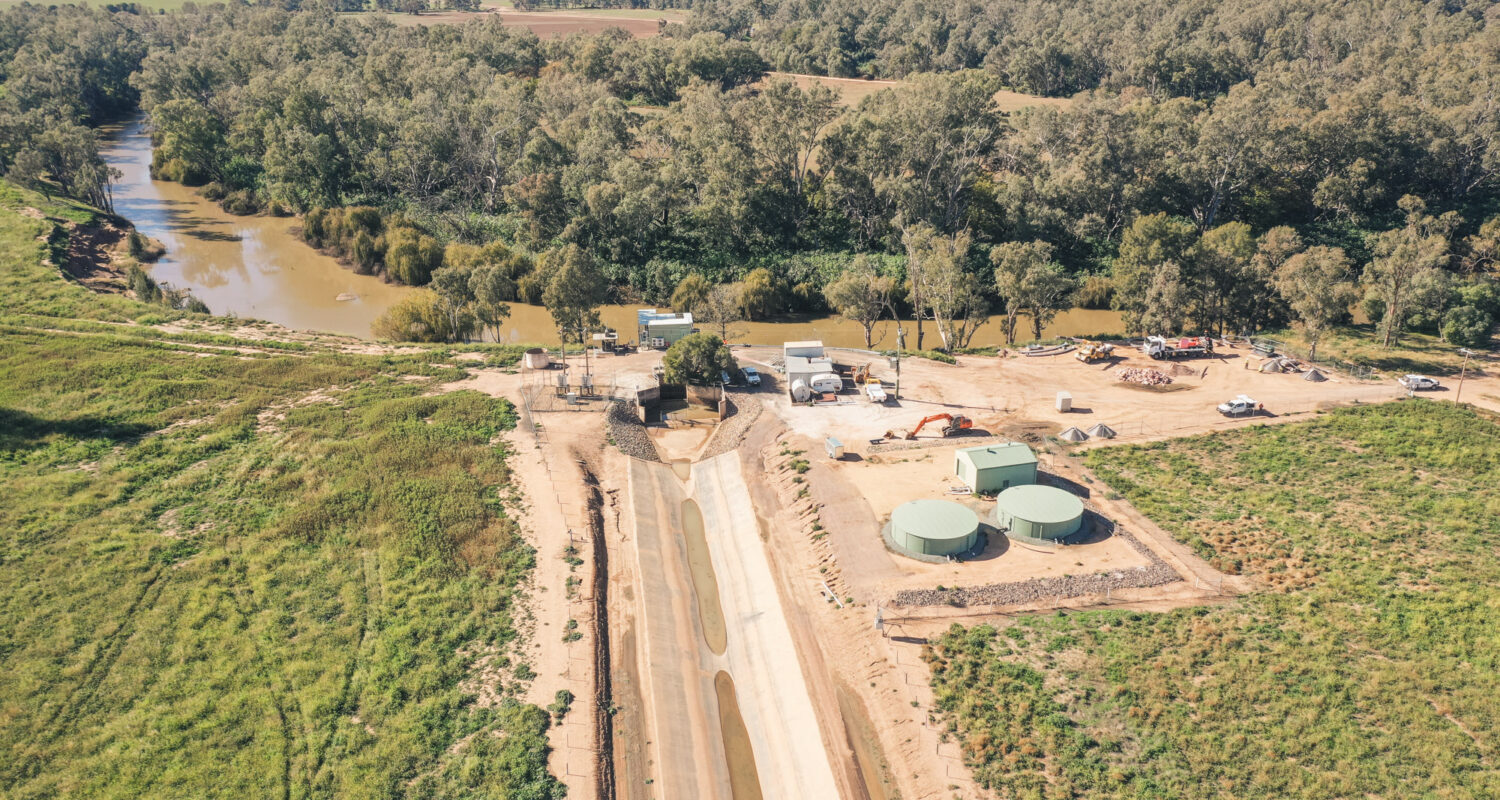

The Trangie-Nevertire Irrigation Scheme (TNIS) screening project is Australia’s largest showcase of modern pump screening designed for fish protection.

TNIS is a member-owned organisation managing 100,000 hectares of mixed farming, with over 21,000 ha under irrigation.

Leading the Macquarie

TNIS was one of the first organisations to install modern fish-protection screens. The goal was to help care for native fish, while reducing the cost and inconvenience of debris intake.

In 2020, the main pumping station was upgraded from traditional, ineffective ‘trash racks’ to four automated, self-cleaning cone screens.

The cone screens have a 3mm stainless steel wedgewire mesh. This reduces the velocity of water at the intake, but doesn’t impact the volume of water pumped.

In fact, because the system doesn’t need to be backflushed as often, pumping is actually more reliable and saves members around $3000 per month in electricity costs.

A bypass system is part of the design. This provides additional insurance in the case of any unforeseen challenges with the screening system.

Fully fish-friendly

In 2023, the diesel back-up pump next to the main pump station was also screened, making the pump station 100% screened and fish-friendly.

On this single pump, a T-shaped cylinder screen was fitted. This setup is a great solution for irrigators with individual pumps, but can also be used for a series of pumps arranged in a row on the riverbank.

The T-screen is fitted to rails and can be fully retracted using an electric winch, for easy inspection and maintenance (in this image, the screen has been retracted).

When the screen is up, water passes through a modernised trash rack – effectively returning the site to the old configuration. Like the cone-screen bypass, this provides additional ‘insurance’.

Native fish research

NSW DPI – Fisheries is surveying fish populations at TNIS. This helps understand the performance of screens under real-world conditions.

Surveys are done ‘with’ and ‘without’ screens, then comparing the results. Preliminary findings show the screening system is highly effective, dramatically reducing intake of fish and debris.

The research is part of a broader program of fisheries and economics. The goal is to continue developing understanding of how screening can improve native fish and fishing, along with the value-proposition and on-farm benefits for irrigators.

To learn more about the science behind screening, check out the Science page. More detail, plus links to scientific papers and reports, can be found on the Resources page.

Project details

Installed: June 2020 (back-up pump completed 2023)

Screen Manufacturer: AWMA Water Control Solutions

Project Partners: NSW Department of Industry and Environment (EES), Department of Regional NSW (Fisheries), Trangie-Nevertire Irrigation Scheme and AWMA Water Control Solutions, Recreational Fishing Trust and OzFish Unlimited.

Project Funding: NSW Drought Relief Fund, NSW Recreational Fishing Trust Habitat Action Grant, and the Macquarie River Screening Program.
